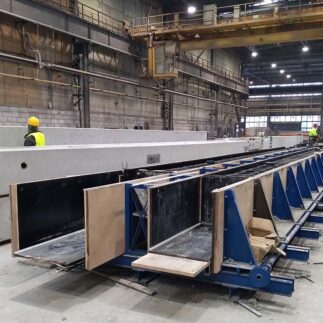

Pojedyncza forma do słupów z podłogą i wyjmowanym szalunkiem

Column and beam formwork

For:

  • columns
  • beams
  • walls
  • dźwigarów

We produce moulds for columns and beams that allow the use of toothed gears for free adjustment within the cross-section range from 300 to 800 millimeters. We offer molds from 12 to 16 meters long. The constructions have manual locking and allow for any positioning of the brackets. Additionally, forms provide contractors with the necessary ease of use, which assumes carpentry and reinforcement works from the "0" level.

Implementations

Specification

  • max. length of 1 mould - 16 m
  • max. cross-section of the formed element – 800 mm x 800 mm – forma podwójna
  • max. cross-section of the formed element – 1000 mm x 1500 mm – forma pojedyncza z szalunkiem
  • Smooth adjustment of all supports - the possibility of forming brackets at any place
