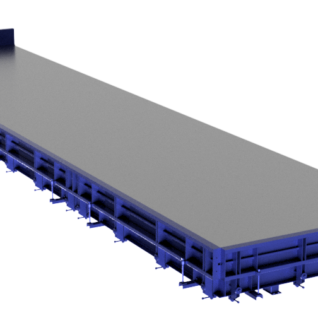

stół stały
stół stały

Fixed tables

For:

  • balcons
  • slabs
  • ceilings
  • walls
  • other flat concrete elements

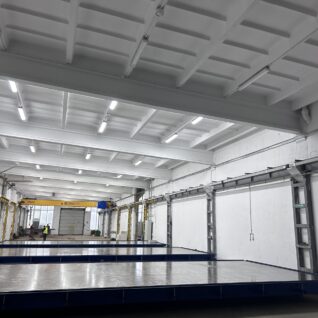

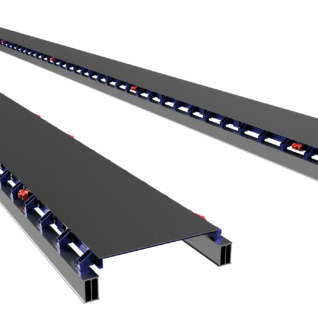

Stoły stałe to proste rozwiązanie do produkcji płaskich elementów betonowych, które nie wymagają obrotu w celu kontrolowanego rozformowania i odpowiedniego transportu.

Stoły mogą zostać przystosowane do produkcji elementów płaskich z odpowiednim detalem np. prefabrykowane balkony.

5,00 m

max. width

>100 m

max. length

w segmentach

1000 kg/m²

max. load

Specification

Szalowanie balkonów

  • Shutterings specjalne do formowania balkonów

zagłębienie umożliwiające produkcję elementów z łącznikami balkonowymi

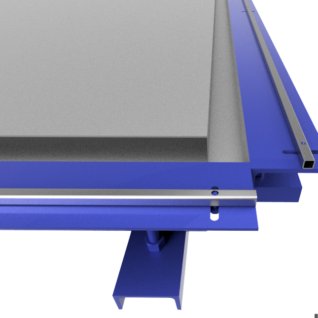

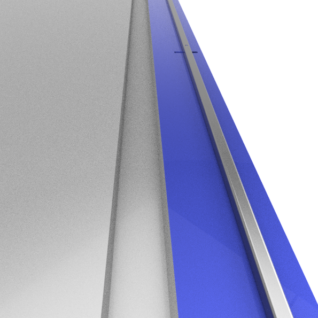

Side shuttering

  • Shutterings fixed

two different options:

full shuttering fixed - there is no need for wooden framework

shuttering with channel sections - to fulfill with wooden framework

The height of the fixed side shuttering depends on the client's specifications











  • Shutterings adjustable

The range of achievable adjustments extends from 100 to 400 mm height.











Formwork can have the ability to fold out for easier demolding and finishing of the element.

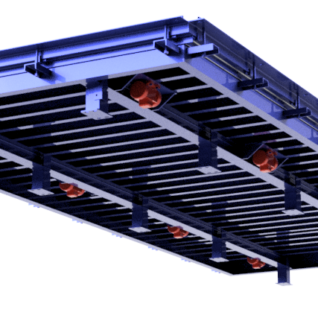

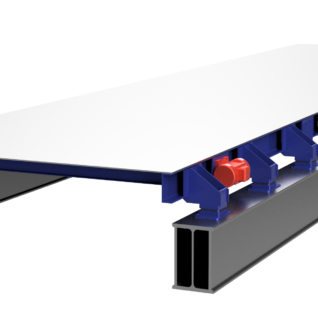

Vibration system

  • In our constructions, we utilize high-frequency vibration system

6000/obr ̄1 100Hz 400V 2,4A ensuring optimal efficiency in the production of concrete elements on tilting tables



  • Vibration system is optional

According to the client's requirements, the table does not need to be equipped with a vibration system, or it can be prepared for the installation of such a system in the future

Extensions of surface

  • Optional extensions for formwork magnets enable the utilization of the full width of the table for element production.
  • The extension can allow for localized formwork of an element wider than the table's width.

Heating system

  • The installation of heating for the tilting table comprises a piping system

with the option of heating using either liquid or steam



  • Heating system is optional



Edge chamfering

An additional feature of the table could be

  • adjustable edge chamfering of the element - up and down

Control panel

Sterowanie systemem wibracji może odbywać się

  • wirelessly - remote control
  • stationarily from the control panel

Information

  • maksymalne obciążenie stołu 1000 kg/m2
  • max. width 5,00 m
  • maksymalna długość jednego stołu w segmencie 20,00 m

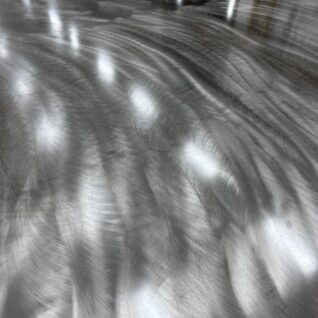

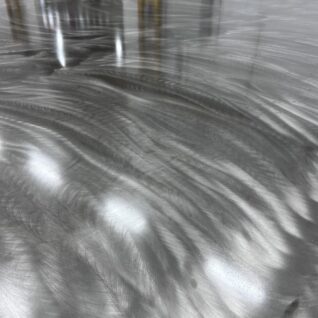

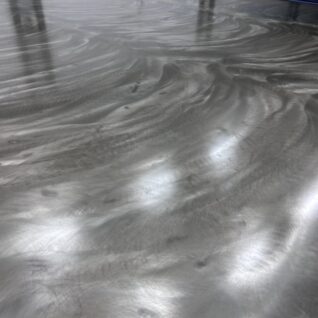

  • Thickness of the table covering 10 mm
  • CE Certification

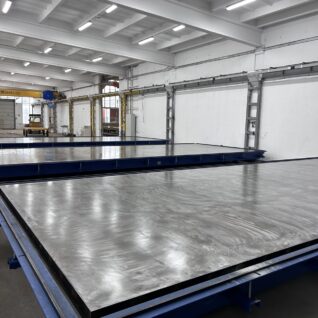

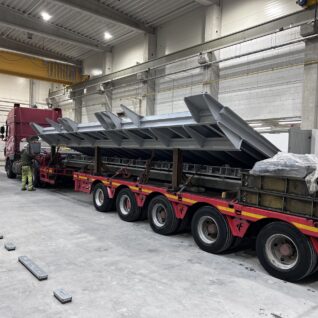

Implementations
