Tilting tables

DESIGNED FOR PRODUCING PRECAST CONCRETE WALLS

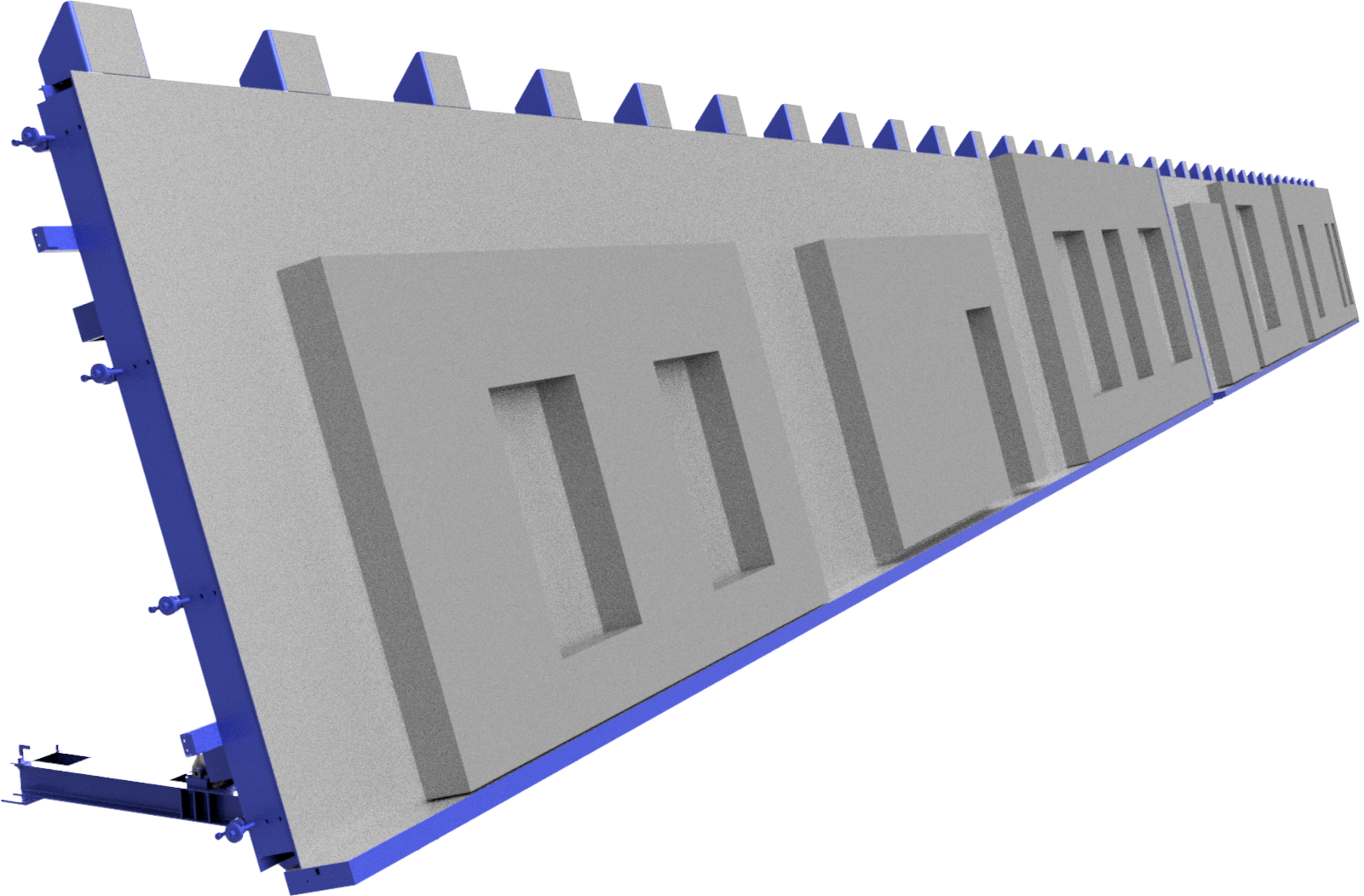

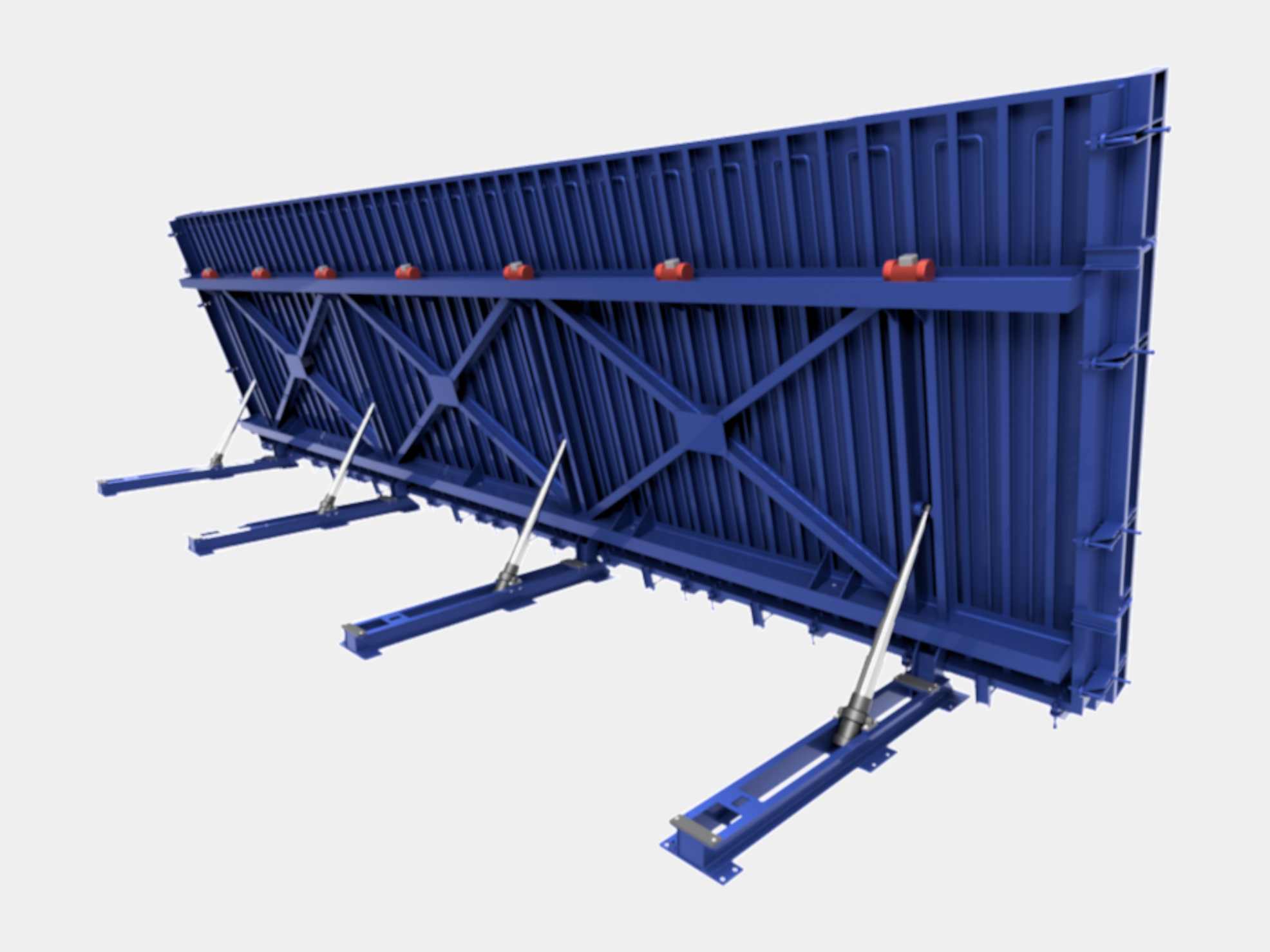

Tilting tables are the basic tool for producing solid, double- or triple-layer precast concrete walls, as well as any other flat concrete elements. Thanks to the tilting mechanism operated by hydraulic cylinders, it is possible to demould and set a high-quality precast wall into the installation position. The tables are configured according to the customer’s requirements in terms of size and additional equipment. Their design is based on proven mechanisms and high-quality components, creating a reliable solution for your prefabrication plant.

Specifications

L max = 16,00 m as a single table

W max = 5.00 m

750 kg max load per m²

Implementations

Stół uchylny do produkcji prefabrykatów betonowych o długości 25 metrów. Podwójny duży, linia produkcyjna do ścian betonowych do prefabrykacji

Supply of tilting tables 25.50 × 4.00 m with TECFLY

Stół uchylny do produkcji prefabrykatów betonowych, ścian i płaskich elementów z systemem wibracji zamontowany na linii do prefabrykatów

A set of tilting tables 13.00 × 3.50 m put into operation in Poland

Tilting tables 8.00 × 3.50 m – complete project in Poland

PRECAST CONCRETE WALL PRODUCTION TECHNOLOGY

Production of precast concrete walls is based on a precise and repeatable process carried out under controlled factory conditions. The accuracy of formwork and the quality of the working surface are crucial – a perfectly flat table ensures proper geometry of the element and a high-quality concrete finish. It is also essential to control technological parameters such as the concrete mix composition, compaction, and curing process. This makes it possible to produce durable, accurate, and consistent elements that accelerate construction and improve the overall quality of the investment.
